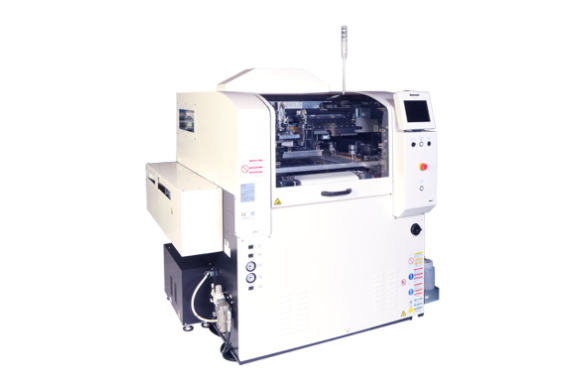

Description
| Model ID | SPV (Single Spec) SPV (1 to 2 Spec) SPV (2 in 1 Spec) SPV (Dual Spec) |
|---|---|
| Model No. | NM-EJP7A |
| PCB Dimensions (mm) | L 50 × W 50 to L 350 × W 300（Max. dimensions of 2 in 1 Spec : L 350 × W 165) |
| PCB Exchange Time * | 10.0 s *Including transfer, positioning, recognition, each-time cleaning. Printing & cleaning conditions: Our recommended conditions (PCB dimensions L 250 × W 165) *Except 2 in 1 Spec [*1] |
| Repeatability | 2 Cpk ± 5.0 µm 6 σ The repeatability of same PCB Equal to ± 5.0 µm ± 3 σ (or ±2.5 µm ±1.5 σ) |
| Screen Frame Dimensions (mm) * | L 736 × W 736 L 650 × W 550 L 550 × W 650 L 750 × W 750 L 584 × W 584 [*2] |
| PCB Discrimination Function: Pre-process | SPV (Single Spec): Not SPV (1 to 2 Spec): Not SPV (2 in 1 Spec): Installed SPV (Dual Spec): Not |
| PCB Discrimination Function: Post-process | SPV (Single Spec): Not SPV (1 to 2 Spec): Installed SPV (2 in 1 Spec): Installed SPV (Dual Spec): Installed |
| Electric Source * | SPV (Single Spec): 1-phase AC 200, 220, 230, 240 V ±10V, Max. 2.0 kVA SPV (1 to 2 Spec): 1-phase AC 200, 220, 230, 240 V ±10V, Max. 2.0 kVA SPV (2 in 1 Spec): 1-phase AC 200, 220, 230, 240 V ±10V, Max. 2.0 kVA SPV (Dual Spec): 1-phase AC 200, 220, 230, 240 V ±10V, Max. 4.0 kVA [*3] |
| Pneumatic Source | 0.5 MPa |
| Mask Cleaning Suction: Blower Spec * | SPV (Single Spec): 280 L/min (A.N.R.) SPV (1 to 2 Spec): 280 L/min (A.N.R.) SPV (2 in 1 Spec): 280 L/min (A.N.R.) SPV (Dual Spec): 560 L/min (A.N.R.) [*4] |
| Mask Cleaning Suction: Ejector Spec * | SPV (Single Spec): 380 L/min (A.N.R.) SPV (1 to 2 Spec): 380 L/min (A.N.R.) SPV (2 in 1 Spec): 380 L/min (A.N.R.) SPV (Dual Spec): 760 L/min (A.N.R.) [*4] |
| Dimensions (mm) * | SPV (Single Spec): W 1,650 × D 1,517 × H 1,500 SPV (1 to 2 Spec): W 1,650 × D 1,517 × H 1,500 SPV (2 in 1 Spec): W 1,650 × D 1,517 × H 1,500 SPV (Dual Spec): W 1,650 × D 3,044 × H 1,500 [*5] |
| Mass * | SPV (Single Spec): 1,550kg SPV (1 to 2 Spec): 1,550kg SPV (2 in 1 Spec): 1,550kg SPV (Dual Spec): 3,100kg [*6] |
* Values such as maximum speed may vary depending on operating conditions.
* Please refer to the “Specification” booklet for details.
[*1]:PCB exchange time varies depending on the machine in the pre-process and the post process, the PCB size, the use of a PCB pressing-down unit and so forth
[*2]: For mask specifications, please see the specification
[*3]: Including blower and vacuum pump “Option”
[*4]: When using the mask suction function
[*5]: Except for the signal tower and the touch panel
[*6]: With full options
* Please refer to the “Specification” booklet for details.
[*1]:PCB exchange time varies depending on the machine in the pre-process and the post process, the PCB size, the use of a PCB pressing-down unit and so forth
[*2]: For mask specifications, please see the specification
[*3]: Including blower and vacuum pump “Option”
[*4]: When using the mask suction function
[*5]: Except for the signal tower and the touch panel
[*6]: With full options
