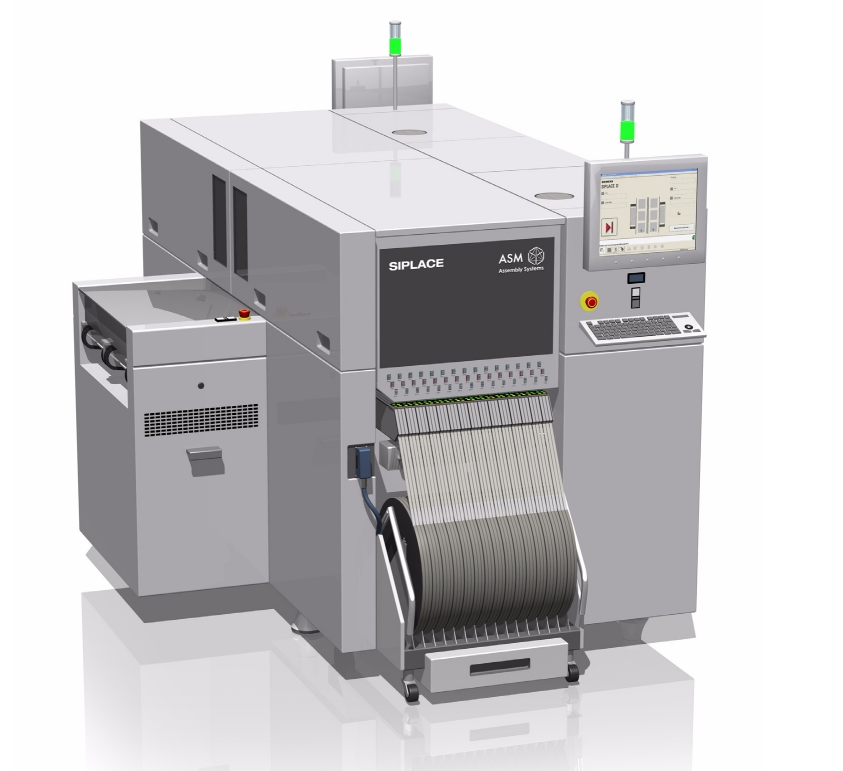

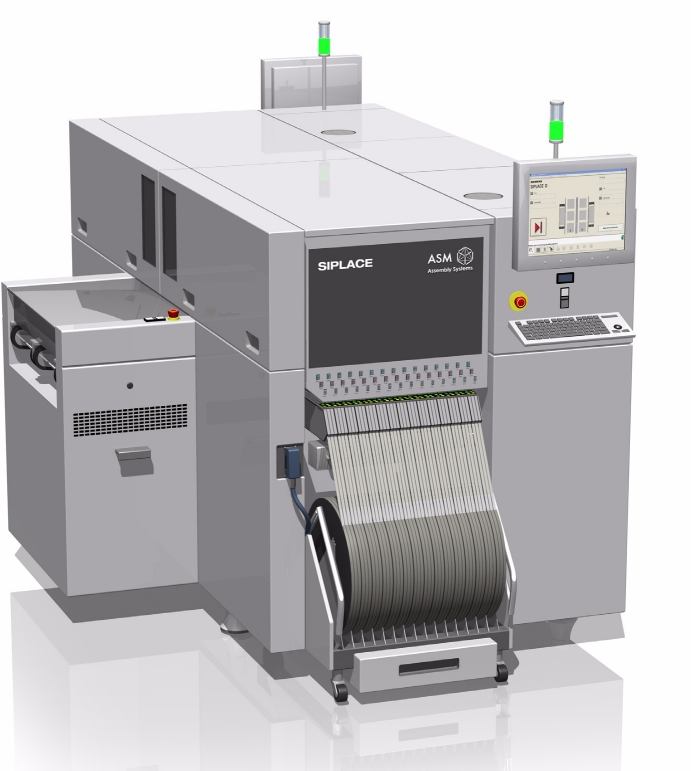

Description
|
Types of placement head
|
12-nozzle Collect & Place head (C&P12)
6-nozzle Collect & Place head (C&P6)
|
|
Number of gantries
|
2 (see Fig. page 9)
|
|
Placement head configuration and placement
ratea
(Benchmark test)
|
Placement rate
C&P12 / C&P12 31,000 comp./h
C&P12 / C&P6 21,000 comp./h
C&P6 / C&P6 19,500 comp./h
|
|
Placement positions
|
6,000 / gantry
|
|
Range of components
|
0.4 x 0.2 mm² (01005)b
0.6 x 0.3 mm² (0201) to 18.7 x 18.7 mm²
(01005 option with software version 604, April 2007)
|
|
Component height
|
C&P12: 6 mm
C&P6: 8.5 mm
|
|
Placement accuracy /
angular accuracy
|
C&P12: ± 67.5 μm, ± 0.53° / (3σ), ± 90 μm, ± 0.71° / (4σ)
(standard camera)
C&P12: ± 60 μm, ± 0.53° / (3σ), ± 80 μm, ± 0.71° / (4σ)
(high-resolution camera)
C&P6: ± 52.5 μm, ± 0.225° / (3σ), ± 70 μm, ± 0.3° / (4σ)
|
| Component feeding |
2 CO changeover tables with tape reel holders and integral
waste containers,
15 locations, each 30 mm wide, for each CO changeover table
|
|
Feeder module types
|
Tapes, bulk cases, stick magazines, application-specific OEM
feeder modules, surftape feeder modules (8, 12, 16 mm)
|
|
PCB thickness
|
0.3 – 4.5 mm (thicker PCBs on request)
|
|
Feeding capacity
|
30 tape feeder modules 3 x 8 mm S (90 tracks)
30 tape feeder modules 2 x 8 mm S (60 tracks)
30 tape feeder modules 12/16 mm S (30 tracks)
20 tape feeder modules 24/32 mm S (20 tracks)
14 tape feeder modules 44 mm S (14 tracks)
12 tape feeder modules 56 mm S (12 tracks)
|
|
PCB format
(LxW)
PLEASE NOTE:
With PCB widths > 450 mm make
sure that the peripheral modules
are also able to process these widths
|
50 x 50 mm² to 460 x 460 mm²
50 x 80 mm² to 610 x 460 mm² (Long board option)
(Width up to 508 mm for Wide board configuration)
Flexible dual conveyor
50 x 50 mm² to 460 x 216 mm²
50 x 80 mm² to 610 x 216 mm² (Long board option)
(Width up to 242 mm for Wide board configuration)
Flexible dual conveyor in Single conveyor mode
50 x 50 mm² to 460 x 380 mm²
50 x 80 mm² to 610 x 380 mm² (Long board option)
(Width up to 430 mm for Wide board configuration)
|
