Description

Machina Performance

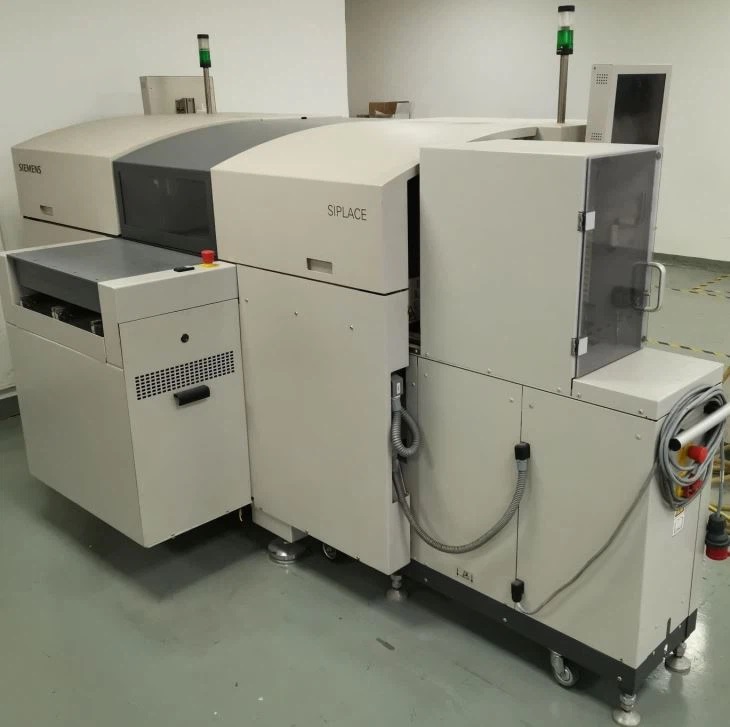

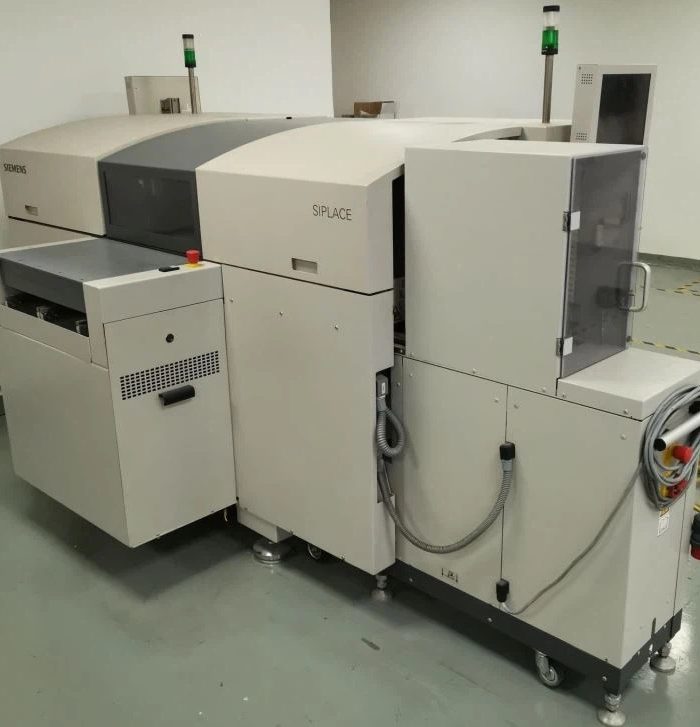

Our company supplies Siemens SMT machine D1, the following is the Siemens placement machine D1, SIPLACE D1/D1s parameters: Siemens SMT D1, Siemens SMT D1S main technical parameters:

Technical data:

Performance theoretical value up to 20,000 CPH

IPC value up to 13,000 CPH

Accuracy ±30μm, ±0.05゚@3δ

PCB size Monorail transmission 50 x 50 to 610 x 508mm

Dual rail transmission 50 x 50 to 610 x 430mm

PCB thickness standard 0.3 to 4.5mm (others available on request)

Feeding quantity 90 8mm rails

Component range 01005″ – 200 x 125mm

Quality Pickup rate: >/= 99.95%

DPM rate: setting Power supply 200/ 208/ 230/ 380/ 400/ 415VAC ±5%, 50/60Hz

Gas supply 5.5bar (0.55MPa) – 10bar (1.0MPa)

Dimensions * Large 1587 x 2636 x 1980mm (length x height x width)

Quality 2325kg (basic machine with 2 skips)

Introduction to SIPLACE D1/D1s:

The concept of the SIPLACE D1/D1s is brand new. Although it is only a single cantilever placement machine, it can be equipped with one (SIPLACE D1s) or two (SIPLACE D1) placement heads according to customer requirements.

Both flexible single-cantilever placement machines combine the proven technology of new technologies. Not only are SIPLACE S feeders compatible with existing machine platforms, but also powerful linear drive technology from the outstanding SIPLACE platform. There are also many new features:

*Newly developed SIPLACE pick-up head for complex components to achieve high-precision SIPLACE digital imaging system

*New version of SIPLACE software with superior functionality

SIPLACE flexible dual-track transmission system

Optional: SIPLACE imaging learning workstation for offline setup.
