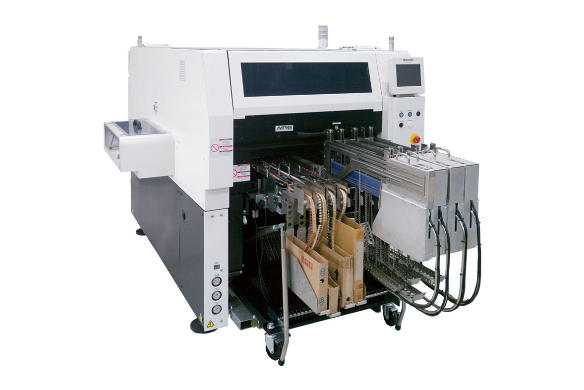

NPM-VF Odd-Form Component Insertion Machine

NPM-VF Odd-Form Component Insertion Machine

Panasonic designed the NPM-VF odd-form solution to address increasing global labor costs and manual assembly complexity. The new platform, built from the award-winning NPM Platform, introduces several innovative solutions to reduce labor requirements and cost, while boosting productivity, enhancing versatility, and helping ensure quality through-hole and odd-form component insertions.

Odd-form automation requires more than placement, so the NPM-VF integrates an active, under-board clinch, which traverses the population area. Adopted from Panasonic’s pioneering through-hole technology, the active clinch system can secure various through-hole lead diameters at multiple rotations. Yet, when not required, the clinch doubles as localized board support for snap-in/press-fit components. Panasonic is simplifying odd-form and manual assembly with a solution that helps reduce labor costs, improve quality, and minimize resource challenges.

KEY FEATURES

  • Body Chuck for gripping large odd-form devices without a pick surface (e.g. power transformers)
  • Lead Chuck for gripping radial lead through-hole devices (e.g. electrolytic capacitors)
  • Swing Nozzle for inserting through-hole devices oriented in packaging different than insertion orientation
  • Reduces labor costs, simplifies complex assembly, and increases production quality
  • Adapts through-hole technologies like active clinching, lead cutting, and part feeding from Panasonic’s 50+ years of through-hole innovation
