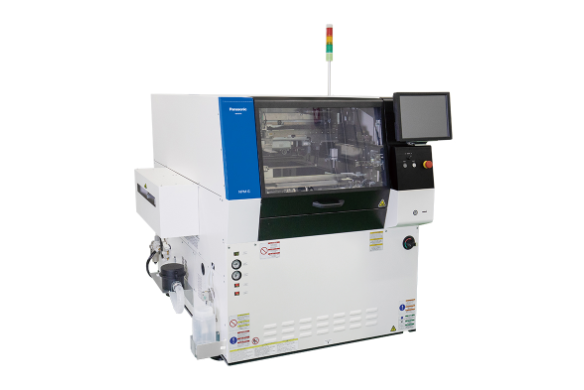

NPM-GP/L Next-Generation Printer

NPM-GP/L Next-Generation Printer

The NPM-GP/L is the newest screen printer added to the NPM-G Series that optimizes Overall Equipment Effectiveness and enhances overall line performance.

It automatically retrieves on-mask soldering after printing and transfers the solder to the mask for the next model. It can also monitor solder paste in real time via the APC-5M function to optimize timing of maintenance and environmental conditions. The NPM-G Series can immediately respond to customer supply and demand changes through continuous, autonomous updates and make autonomous factories a reality.

KEY FEATURES

  • Printing cycle time of 12 seconds
  • Repeated positioning accuracy of ±3.8 μm
  • Model changeover and solder transfer and supply automation reduce production time and machine downtime
  • Incorporates unit cleaning for each cycle and optimized maintenance timing
Categories: ,

Description

Model ID NPM-GP/L
Model No. NM-EJP2B
PCB Dimensions (mm) * L 50 mm × W 50 mm to L 510 mm × W 510 mm
[*1]
PCB Exchange Time * 12.0 s including transport , PCB positioning , PCB recognition , printing , each cleaning operation
(When PCB = L 250 mm × W 150 mm)
[*2]
Repeatability 2 Cpk ± 3.8 μm ± 3σ (Panasonic-specified condition)
Printing Accuracy 2 Cpk ±15.0 μm ± 6σ (Panasonic-specified condition)
*CeTaQ measuring machine used
Screen Frame Dimensions (mm) * L 736 mm × 736 mm , L 750 mm × 750 mm , L 650 mm × 550 mm , L 600 mm × 550 mm
L 550 mm × 650 mm , L 584 mm × 584 mm , L 736 mm × 584 mm , L 584 mm × 736 mm
[*3]
Electric Source * Single-phase AC 200 V ±10 V / AC 220 V ±10 V / AC 230 V ±10 V / AC 240 V ±10 V (Taps can be changed) , Max.3.3 kVA
[*4]
Pneumatic Source 0.5 Mpa , 30 L / min (A.N.R.) (motor vacuum specs) , 400 L / min (A.N.R.) (ejector vacuum specs)
Dimensions (mm) * W 1,580 mm × D 1,800 mm × H 1,500 mm
[*5]
Mass * 1,750 kg
[*6]
*Values such as cycle time and accuracy may vary depending on operating conditions.
*Please refer to the “Specification booklet” for details.
[*1]: When “Paper-free Wiping Unit,” “automatic support pin exchange” or “Attack variable angle squeegee” has been selected, the limit of the maximum PCB width changes. For details, refer to “Specification manual.”
[*2]: The PCB replacement time differs depending on downstream and upstream machine types, PCB size, the use of PCB holders, etc.
[*3]: For Metal Mask specs, refer to Specification manual.
[*4]: Blowers and vacuum pumps (option) included.
[*5]: Signal tower and touch panel excluded.
[*6]: When the machine is fully optioned.
